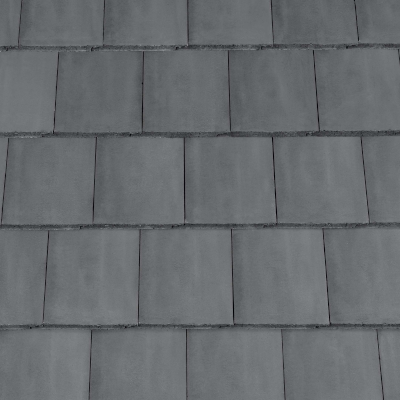

REDLAND MINI STONEWOLD TILE SLATE GREY 10001733

Product Code: REDMINSWDSLGR | Availability: In Stock

Redland Mini Stonewold Tile Slate Grey 10001733

Click to enlarge image

Product Description

An economical flat concrete tile with interlocking edges. Can be laid at pitches as low as 17.5° in both new build and reroofing projects

£1.88 excl VAT

/ Each
Tile Colour:

Technical Data - BMI Redland Mini Stonewold Interlocking Tiles
Size 418 x 334mm
Minimum Pitch

22.5° 75mm headlap

17.5° 100mm headlap

*please contact Redland Technical if rafter length exceeds 10m

Maximum Pitch 90°
Maximum Batten Gauge

343mm at 75mm headlap

318mm at 100mm headlap

Hanging Length 397mm nominal
Cover Width 294mm nominal
Covering Capacity

9.9 tiles/m² at 75mm headlap

10.7 tiles/m² at 100mm headlap

Battens Required (lin.m/m²)

2.92m at 75mm headlap

3.1m at 100mm headlap

Batten Size recommended (fixed to BS553
4)

38 x 25mm for rafter/supports not exceeding 450mm centres

50 x 25mm for rafter/supports not exceeding 600mm centres

Weight

51 kg/m² at 75mm headlap

55 kg/m² at 100mm headlap

Fixings

Tile nails (50 x 3.35mm A/A)

Eaves Clips, Verge Clips, Tile Clips
